XY-42A Spindle type core drilling rig

Name: XY42A Spindle type core drilling rig
Brand: SINOCOREDRILL
Price: 1 USD

XY-42A Spindle type core drilling rig Manufactures

Place of Origin : China

Brand Name : SINOCOREDRILL

Certification : CE

MOQ : N/A

Packaging Details : Sea Delivery Package

Delivery Time : 30Days

Payment Terms : T/T

Supply Ability : Based on Detailed Order

Contact Now

Spindle Type Core Drilling Rig (XY-42A)

XY-42A is a kind of core drill driven with tungalloy-carbide-tipped bit and diamond-bit, small-diameter. It is mainly suitable for exploration of metal or non-metal solid mineral ore bed. It is widely applied in the field of geology, metallurgy, coal mine, hydrological and engineering drilling. It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.

XY-42 core drill is the improved product based on XY-4 core drill. Besides all the facilities of XY-4, it is also extended the using range. The core drill is mainly adapted to suit for core drilling with diamond bit or tungsten-carbide tipped bit. It can also be used for exploration of engineering geology and hydrological drilling, and even for large hole foundation stake drilling. In addition to china, it is also sold in South-east Asia and Africa.

XY-42A Spindle type core drilling rig

XY-42 Drilling Machine Specification

Drilling depth	Core drilling	500--1100m
	Foundation stake drilling	100m
	Hydrological drilling	150m
Drilling angle		0-360°
Max. torque		3.2kN.m
Spindle stroke		600mm
I.D of spindle		92mm
Max. Lifting capacity of spindle		80kN
Max. Pressuring force of spindle		60kN
Max. Hoisting force		30kN
Power		30kW
Dimensions(L×W×H)		2730×1100×1860mm
Weight(without power unit)		1800kg

Product Tags:

Hydraulic drill rig

core drill rigs

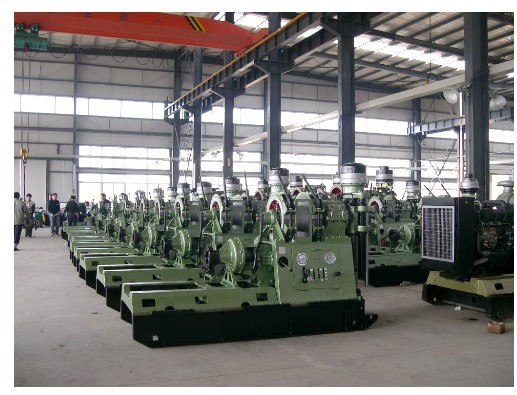

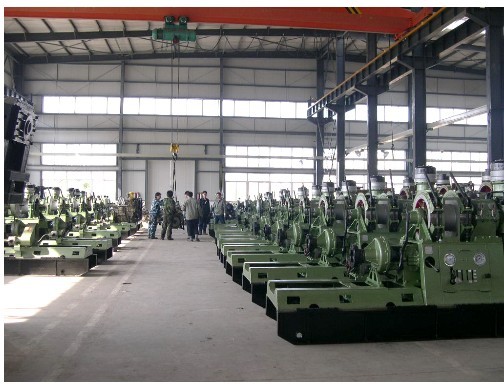

XY-42A Spindle type core drilling rig Images
