Yellow Color 32 Tons Horizontal Directional Drilling Rigs 0-140RPM Spindle Speed
1.Equipped with two-speed power head, the rig run in low speed at the time of drilling and reaming back to ensure smooth construction. When Light back and forth to load and unload rods, the power head can accelerate sliding to reduce the auxiliary time and improve the work efficiency.
2.Rubber tracks have the least impact on roads, lawns and scenic spots.
3.Application of our patented technology of floating vise, which can effectively extend the life of the drill pipe.
4.The rotation console can increase the operator’s field of view and reduce the fatigue, to make the operation more simple and comfortable.
5.Drilling rod automatic loading and unloading device can improve work efficiency, reduce the labor intensity and the number of workers.
6.Hydraulic drive. The fuel tank and the low speed and high torque motor control the drilling and retraction of the bolt, easy to operate.
7.The hood design is reasonable, Making engine maintenance and hydraulic system replacement filter simple and convenient.
| Engine | | |
| Model | - | Cummins 6BTAA5.9-C205 |
| Rated power | KW/r/min | 153/2200 |
| Push and pull | | |
| Maximum force | KN | 320 |
| Maximum speed | m/min | 15 |
| Rotation | | |
| Torque | N · m | 12000 |
| Maximum rotation speed | r/min | 140 |
| Mud pump | | |
| Maximum flow | L/min | 320 |
| Maximum pressure | Mpa | 8 |
| Drill rod | mm*m | φ73×3 |
| Lorry crane | | |
| Hoisting weight | T | -- |
| Lifting moment | t•m | -- |
| Maximum entry angle | ° | 20 |
| Maximum return diameter | mm | φ800 |
| Weight | T | 10 |
| Dimension | mm | 6500×2250×2450 |
| Remark | - | Optional: 1. cab; 2. Air conditioner; 3.automatic tongs; 4.semi-automatic tongs; 5.single anchor; 6.double anchor; 7.mud antifreeze |
Product Tags:
|
|

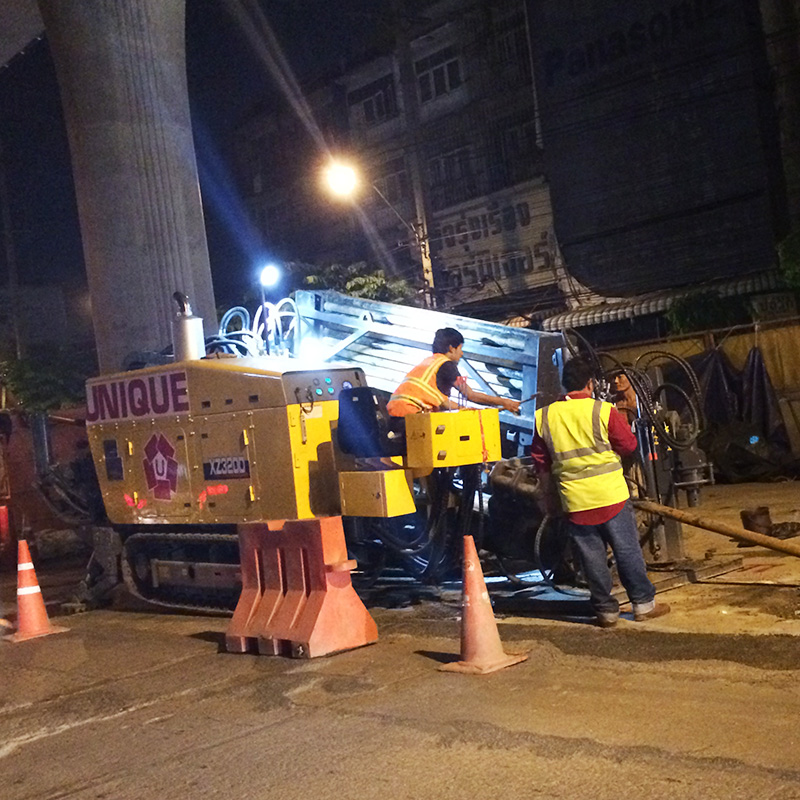

Yellow Color 32 Tons Horizontal Directional Drilling Rigs 0-140RPM Spindle Speed Images
|
